Single Spindle Automat Traub Machine Model PAT-32

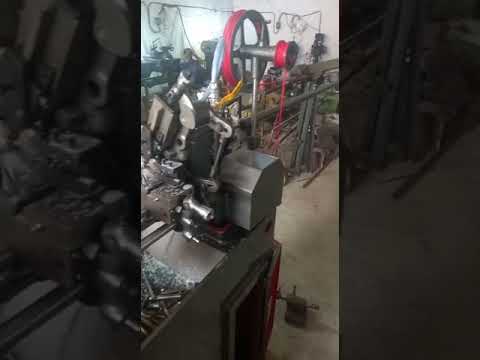

Product Video

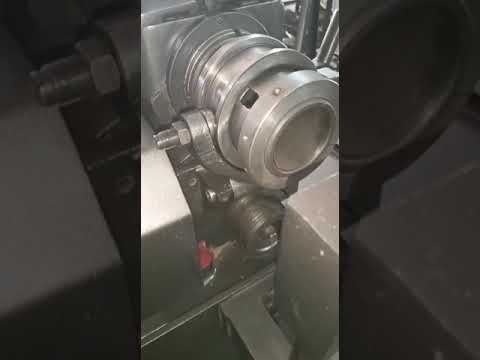

Product Video
Product Video
Single Spindle Automat Traub Machine Model PAT-32

Single Spindle Automat Traub Machine Model PAT-32

Price ₹ 2,07,000.00 ₹2,38,000.00

General Detail:
ModelPENTAGON PAT-32
MaterialSteel
Power3 HP
Voltage415 V
Spindle Speed1440/2800
Capacity32 mm
Maximum Turning Length mm
Usage/Applicationturning, parting, threading, drilling, tapping
view on aajjo.com
Call Now

Description

The Traub Machine is a high-performance turning machine designed for precision and efficiency. With its advanced technology and user-friendly interface, it is ideal for a wide range of applications in the manufacturing industry. The machine features a robust construction and a powerful motor that ensures smooth and accurate operation. Its innovative design allows for easy setup and quick changeovers, making it a versatile and reliable choice for any production environment. Whether you need to produce small or large batches of parts, the Traub Machine delivers exceptional results every time. Invest in this top-of-the-line machine and take your manufacturing capabilities to the next level.

Features-

  • Large machine base gives extra rigidity and gripping power to the machine
  • Main spindle drive motor mounted outside
  • V belt located outside for easy access large distance between guide bars enables use of bigger size tailstock
  • Drums for heavy load drilling
  • Two camshafts with independent worm and worm wheel
  • Guide bars can be reversed after wear due to constant use. End casting width increased to provide longer bearing area for camshafts and guide bars
  • Needle roller bearings used in head stock and end casting to support camshafts chucking arm is reversible. • larged coolant tank capacity with motorized pump
  • Increased bearing area for all slides
  • Double vertical slides provided with micrometer adjustment
  • Cross slide and vertical slide cams are interchangeable
  • Large space for chip collection and easy access for chip clearance
  • Change gears with fixed center distance
  • Collets cams, tool holders are interchangeable with other automats of similar design
  • All the specifications are subject to change without prior notice

Delivery & Installation

In stock and immediate

No installation required as these machines are plug and play type

Warranty & Conditions

One year against any manufacturing defect
